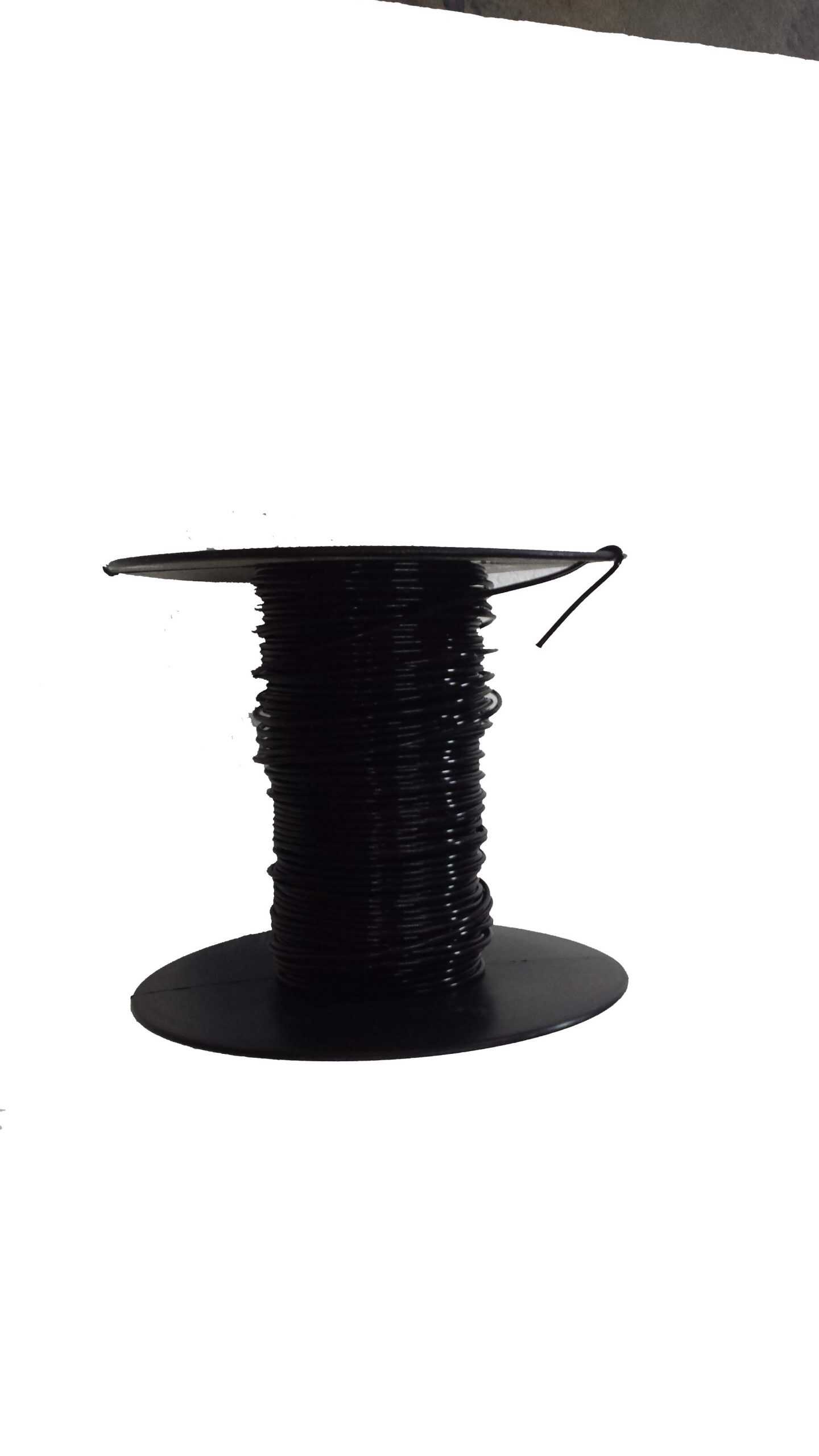

Oven Wire – High Temp Black AWG18 Sold Per Metre

Original price was: $4.95.Current price is: $4.00. inc. GST

Fast Shipping


SKU: CA-18TE1930-0 Categories: ,
Guaranteed Safe Checkout

Same Day Shipping (orders place before 11am)

  • 12 Month Warranty!
  • Top Quality Product
  • Secure Payments

Oven Wire – High Temp Black – Medium wall extruded PTFE insulation
Insulation: Extruded PTFE, wall thickness 0.25mm
Price Per  Metre

– CONDUCTOR: Silver-plated copper – INSULATION: TFE, extruded
– TEMPERATURE: -60°C to 200°C
– VOLTAGE: 600 V

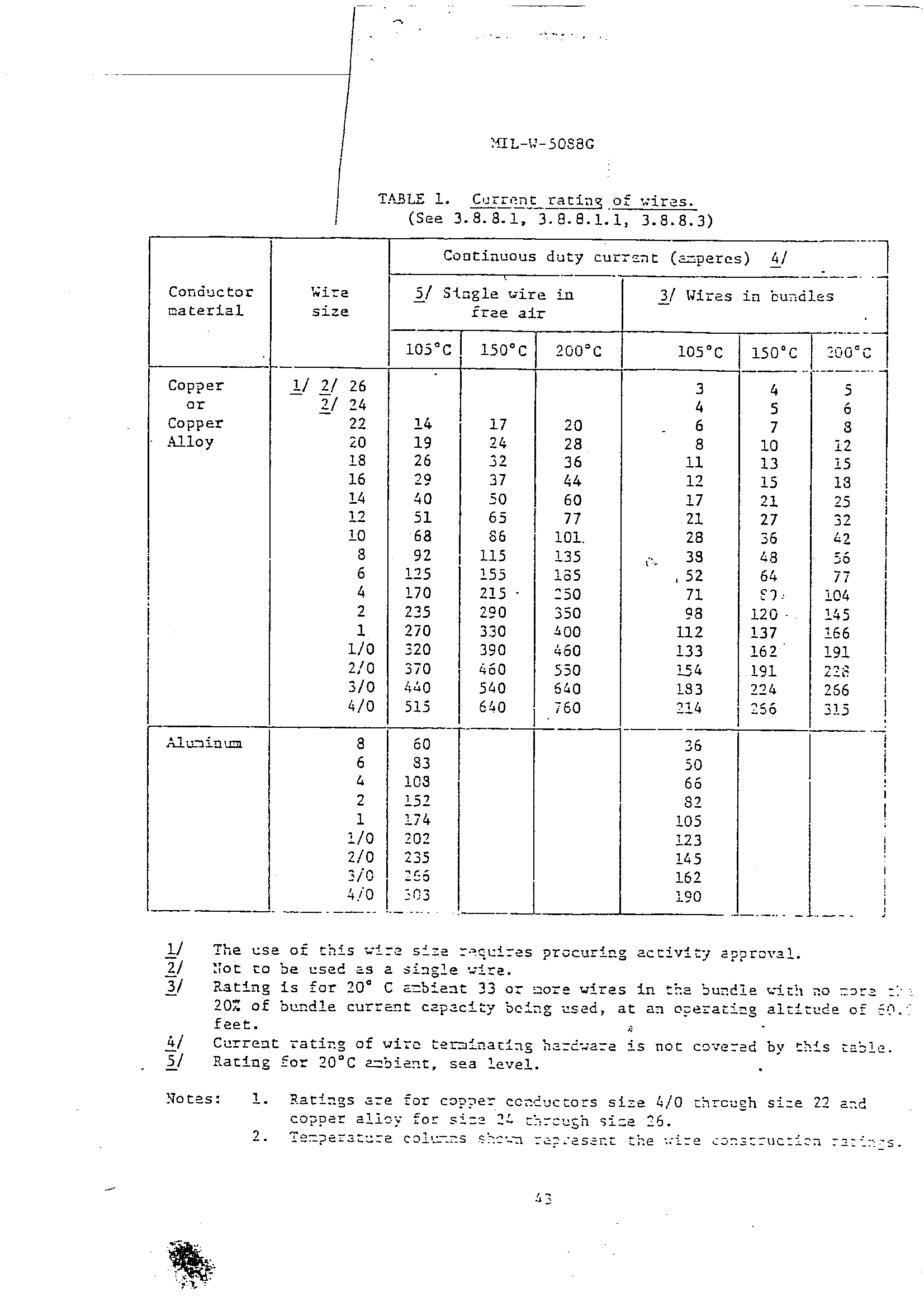

Current Carrying Capacity: 26 amps At 105 degrees C in free air* (As Per Current Rating Guide Chart)


Thermax Part#: 18-TE-1930

Conductor Size AWG18

Conductor Diameter: .047 (1.19)

Stranding No. x AWG 19×30

Maximum Resistance:  5.79 (19.0)

Insulation Diameter: Min .064 (1.63) Max .074 (1.88)

Nom. O.D. (in.) 0.069

Weight: 7.60 (11.3)

Standard: MIL-W-16878

Weight 0.2 kg
Dimensions 13 × 23 × 32 cm
