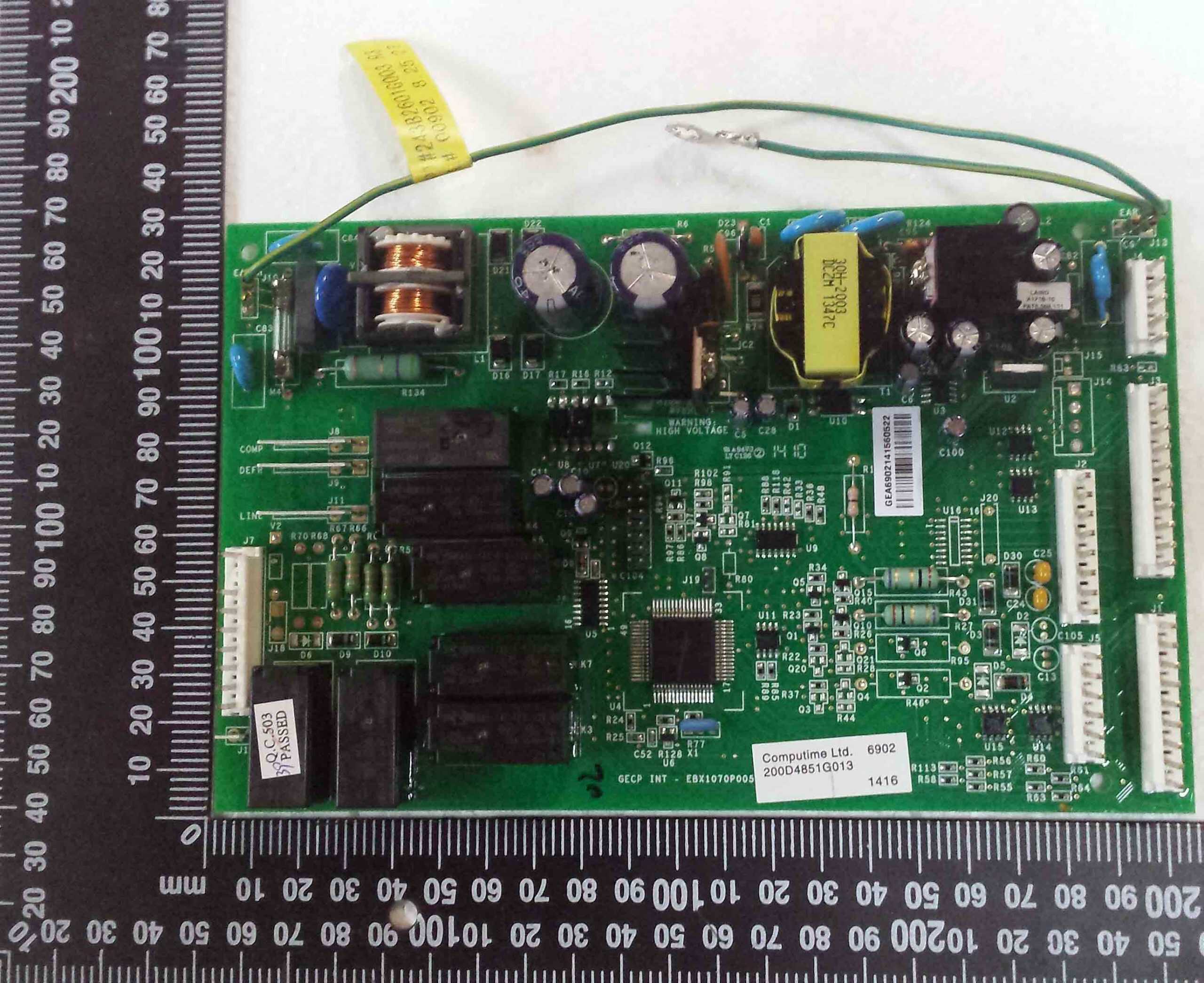

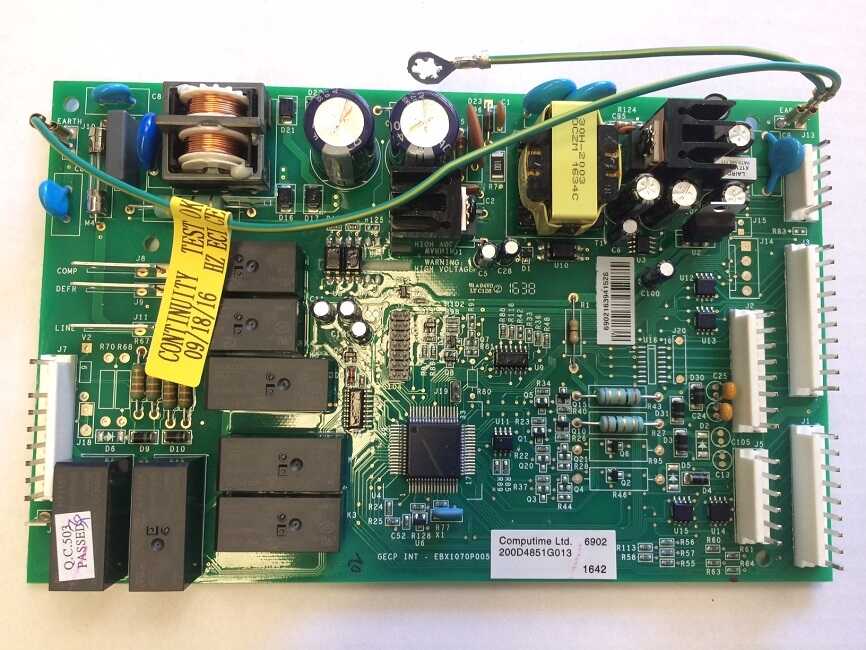

WR55X10556 Genuine GE Fridge Main PCB Board ASM Main INTL

WR55X10556 General Electric Refrigerator Main PCB

*PLEASE NOTE THAT THESE BOARDS ARE SUPPLIED FROM THE FACTORY PRESET TO FAHRENHEIT.

REFER TO BULLETIN INSTRUCTIONS TO CHANGE TO CELCIUS*

MUST READ NOTES: on GSA Models where the white/yellow wire on pin 2 of the J1 connector it is to be changed to pin 1 of the J1 connector failure to do this will result in poor PC temps.

On some fridges this part wr55x10556 was not used on however this is not listed on the parts manuals and GE do not know which models. If you fit a wr55x10556 to these models you will get flashing zeros on the digital display panel. For these models you will need to use a WR55x10942 main board.  if you fit this board to these models you will get flashing zeros on the digital display panel. For this range of models you need to use a WR55X10942 main board. If you visit the customer before ordering the main board, check the manufacture number on the original board if this is 200D4851G013 then order WR55X10942. Please ask for bulletin flashing zeros for more information PLEASE CHECK THE ORIGINAL PARTS If its part number 200d4851g013 then order wr55x10942.

ALT CODE:

WR55X26733, WR55X10334, WR55X10505 , wr55x10104, wr55x10277, wr55x10695, wr55x10281, wr55x10591, WR55X10434, wr55x10116, wr55x10505,wr55x10477, wr55x10062, wr55x10382, wr55x10096, wr55x10064, wr55x10192, wr55x10121, wr55x10382, wr55x10096, wr55x10064, wr55x10478, 6871jk2007b, WR55X10556. WR55X10062. WR55X10064. WR55X10096. WR55X10104. WR55X10116,WR55X10121. WR55X10132, WR55X10144, WR55X10181, WR55X10190, WR55X10191, WR55X10192, WR55X10193, WR55X10277, WR55X10281, WR55X10284, WR55X10334, WR55X10370W, R55X10373, WR55X10382, WR55X10394,WR55X10425,WR55X10434,WR55X10471,WR55X10477,WR55X10478,WR55X10505,WR55X10591,WR55X10623,WR55X10695

Suits: General Electric: Many Models
