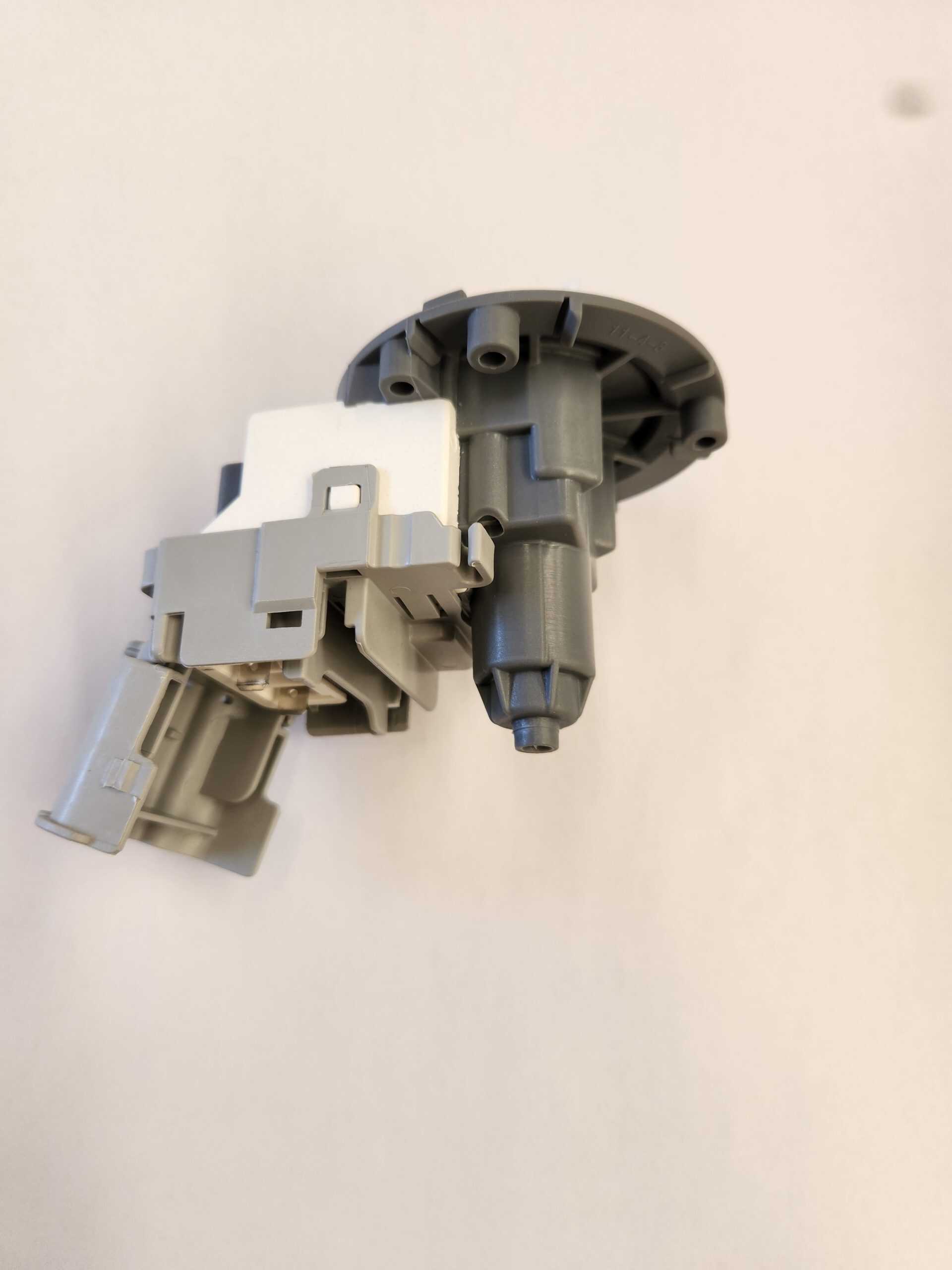

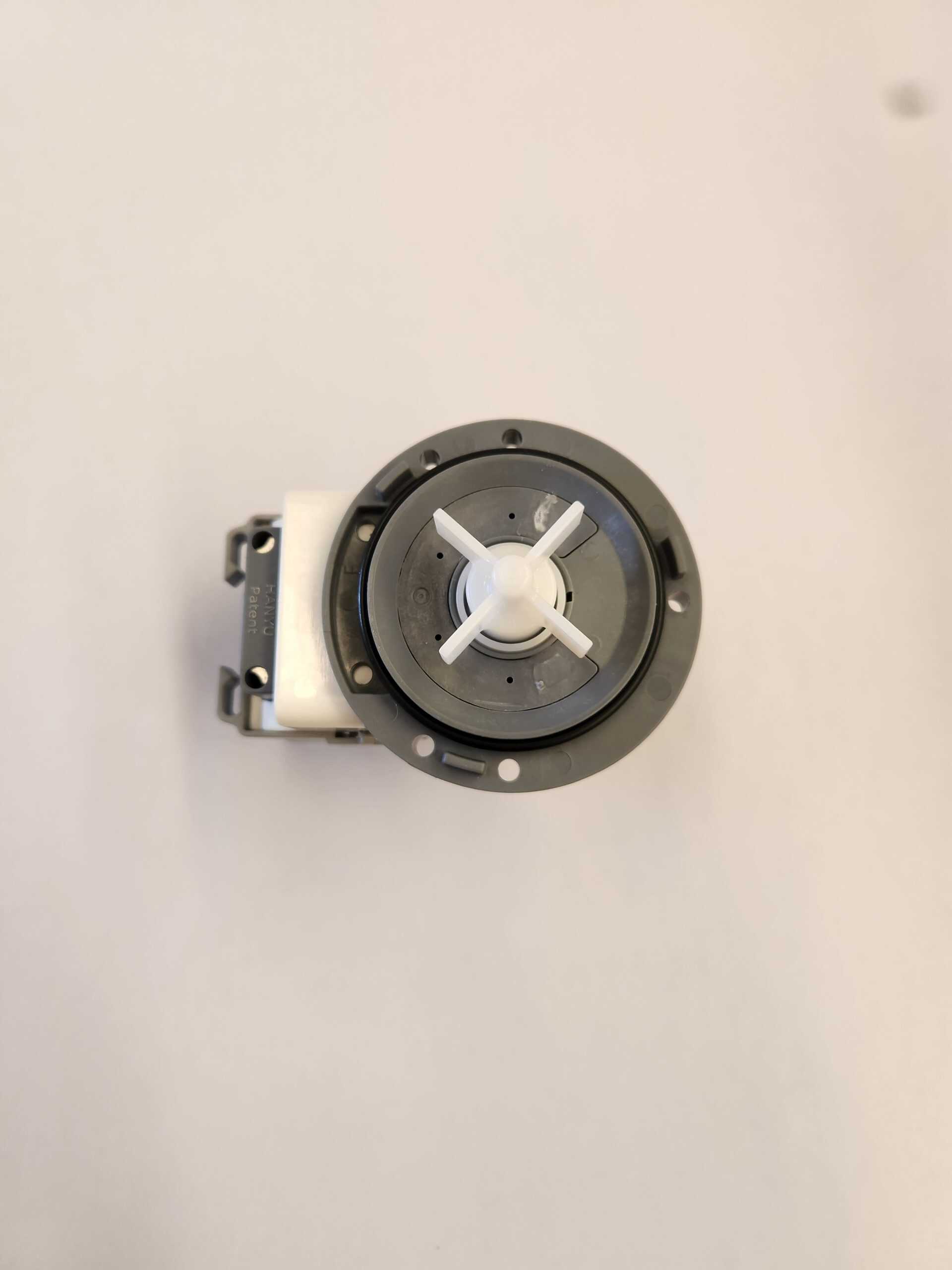

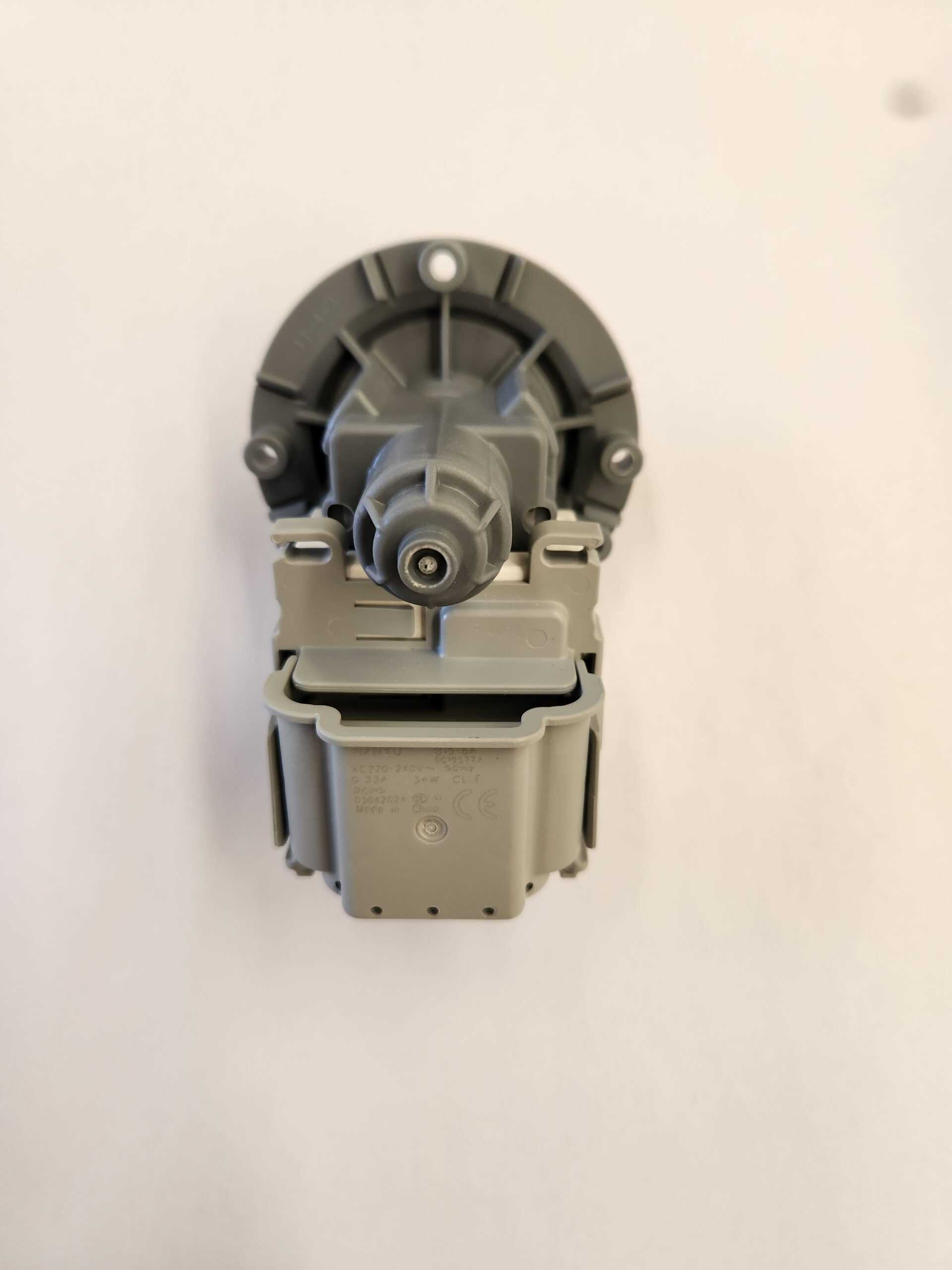

DC31-00181A Samsung Compatible Washing Machine Drain Pump

Samsung Compatible Washing Machine Drain Pump – DC31-00181A

The drain pump empties the water from your washing machine at the end of each wash and before the spin. When it wears out or jams, the machine won’t drain, won’t spin, leaves clothes soaking wet, or stops with a drain error. This DC31-00181A pump is a direct-fit replacement that gets your Samsung washer draining and spinning again.

What this pump fixes

• Machine won’t drain or leaves water in the drum
• Clothes still soaking wet after the cycle (no spin)
• Samsung drain error codes 5E, 5C or nd
• Loud humming or grinding from the pump during drain

Specifications

• 220–240V, 50Hz, 0.3A, 30W
• 5 screw-hole housing mount
• 2 × 6.3 mm spade terminals
• Rubber gasket/seal included

Note: some machines use two of these pumps — check how many your model has before ordering.

Compatible Samsung models

Fits a wide range of Samsung top and front loaders across the WA, WD, WF and WW series, including:

• WA top loaders: WA13M8700GV, WA65F5S6DRW, WA70F5G4DJW, WA75F5S6DRA, WA80F5G4DJW, WA85J6750SW, WA85N6750BV, WA85R6350BW, WA90R6350BV, WA90T6250BW
• WW / WF front loaders: WW85J54E0IW, WW85T984DSH, WW85T504DAE, WF80F5E5P4W
• WD washer-dryers: WD95T754DBT, WD10J8420GW, WD10T654DBH

… and many other Samsung WA / WD / WF / WW models.

Also sold as: DC31-00181E, DC31-00030H and PX2025-1 (cross-references 9019577, 1934055, 2509587, 2550277).

Not sure if it fits?

Send us your Samsung model number (on the door frame or the rear of the machine) and we will confirm this is the correct pump — and whether your machine needs one or two — before you buy.

Why buy from Electrical Supplies Australia

• Direct-fit replacement with gasket included
• 12-month warranty* for peace of mind
• Fast dispatch from our Brisbane warehouse, with 14-day returns

*Warranty covers manufacturing defects. Please confirm your model before purchasing if you are unsure.
