11114230 Genuine Miele Drive Belt

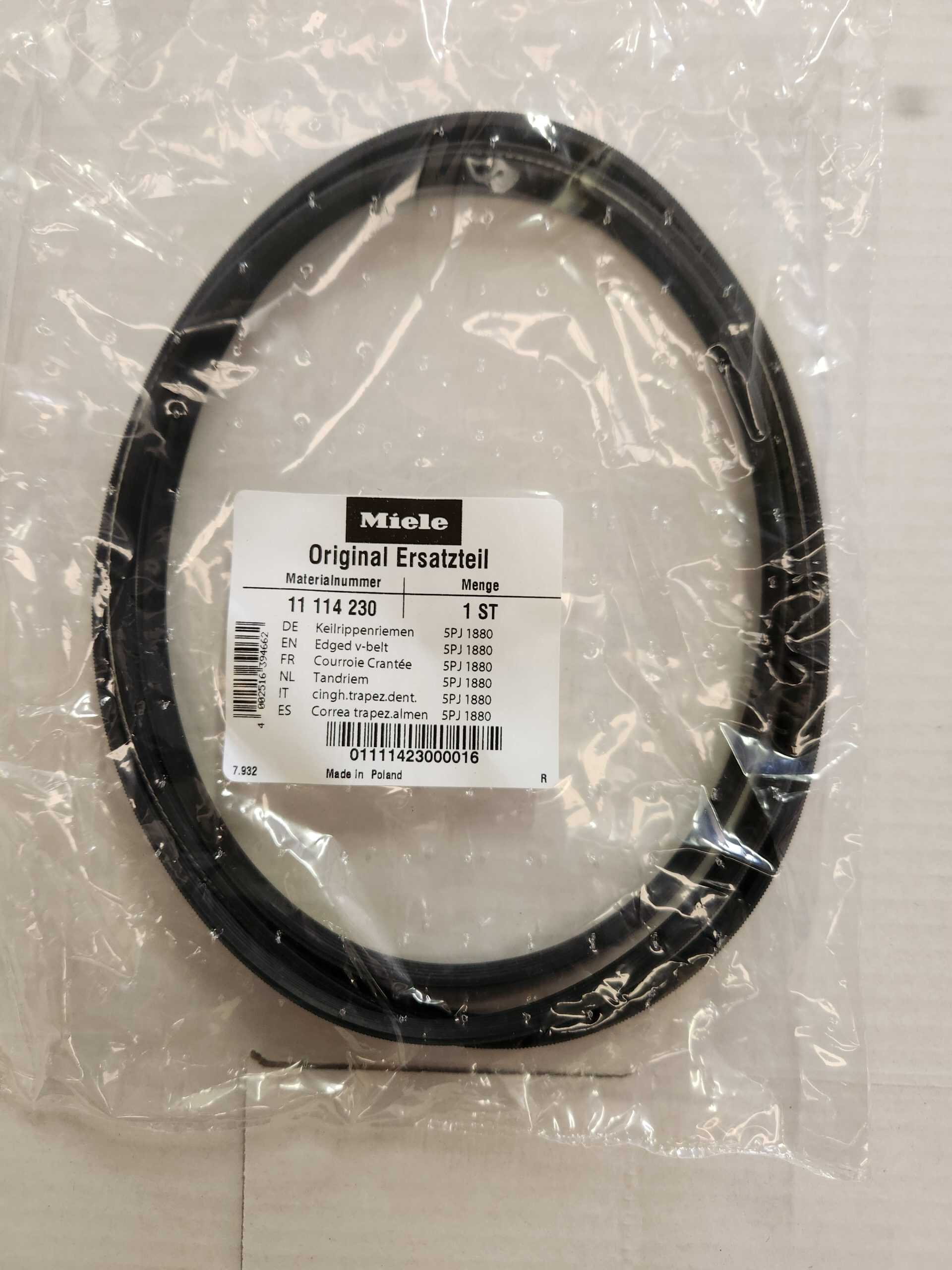

Genuine Miele Dryer Drive Belt – 11114230 (5PJ1880)

If your Miele dryer hums or runs but the drum will not turn, or it has started squealing, screeching or smelling of hot rubber, the drive belt has usually stretched, glazed or snapped. This is the genuine Miele belt (part 11114230) and replacing it gets the drum turning properly again.

It is the 5PJ1880 edged V-belt – 5 grooves, 1880 mm – supplied as a genuine Miele part and backed by a 12-month warranty*.

What this belt fixes

• Motor runs but the drum does not turn
• Loud squealing, screeching or chirping while running
• Hot rubber or burning smell during a cycle
• Belt found snapped, split, stretched or glazed
• Drum that turns freely by hand but will not drive under power

Compatible Miele models

Fits a wide range of Miele dryers, including:

• T-series (domestic): T284, T288, T1329C, T1339C, T1403, T1405, T1413, T1415, T4659C, T4659Ci, T4809Ci, T4819Ci, T4839C, T4839Ci, T4859Ci, T7634, T7734, T7736, T7750, T7754, T7770, plus T7900 and T8000 series
• T1 series: TCA220WP, TCE630WP, TDB130WP, TDD130WP, TEA225WP, TKB350WP, TSA223WP, plus TCE, TCF and TCH series
• Professional (PDR / PT): PDR300HP, PDR307EL, PDR307HP, PDR507EL, PDR507HP, PDR508HP, PDR908EL, PDR908HP, PT5136, PT5139, PT5156, PT7136, PT7138 Plus, PT9136

The same belt is also used in some Miele washing machines.

Alternate part number: 5689130.

Not sure if it fits? This belt spans a lot of models, so send us your Miele model and M.-No. (on the sticker inside the door or on the rear panel) and we will confirm before you buy.

Why buy from Electrical Supplies Australia

• Genuine Miele part – correct 5PJ1880 profile and length
• 12-month warranty* for peace of mind
• Fast dispatch from our Brisbane warehouse
• 14-day returns

*Warranty covers manufacturing defects. Correct fitment is the responsibility of the installer – please confirm your model and M.-No. if you are unsure.
