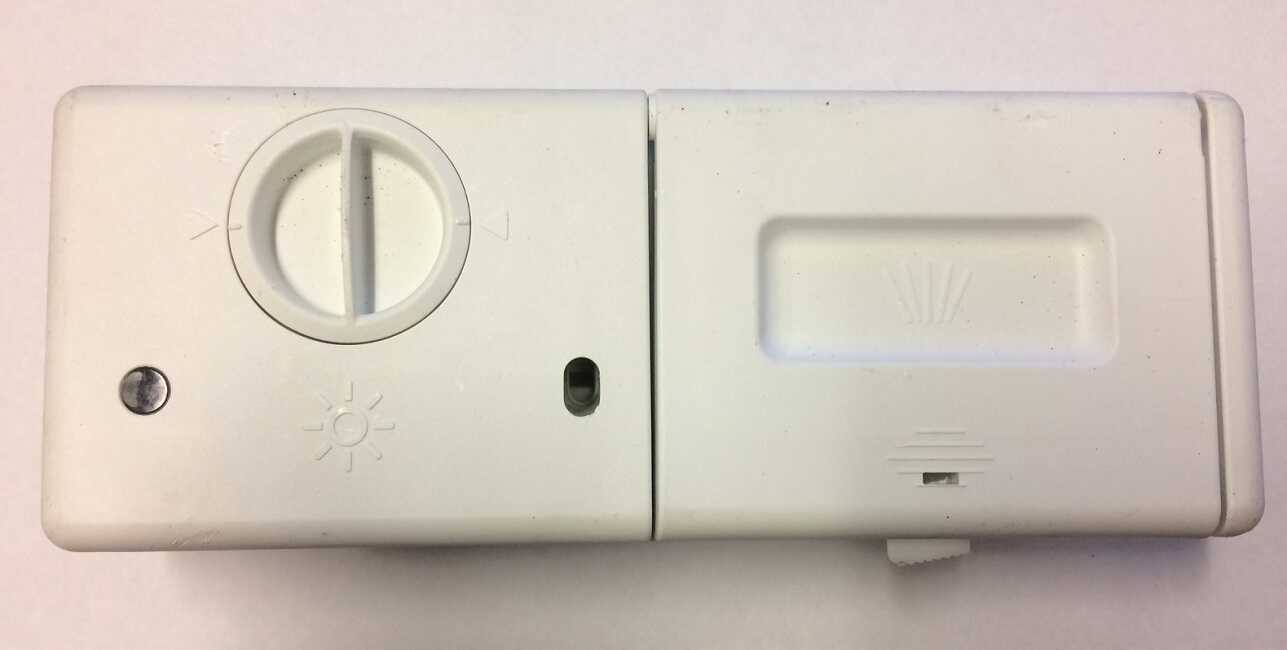

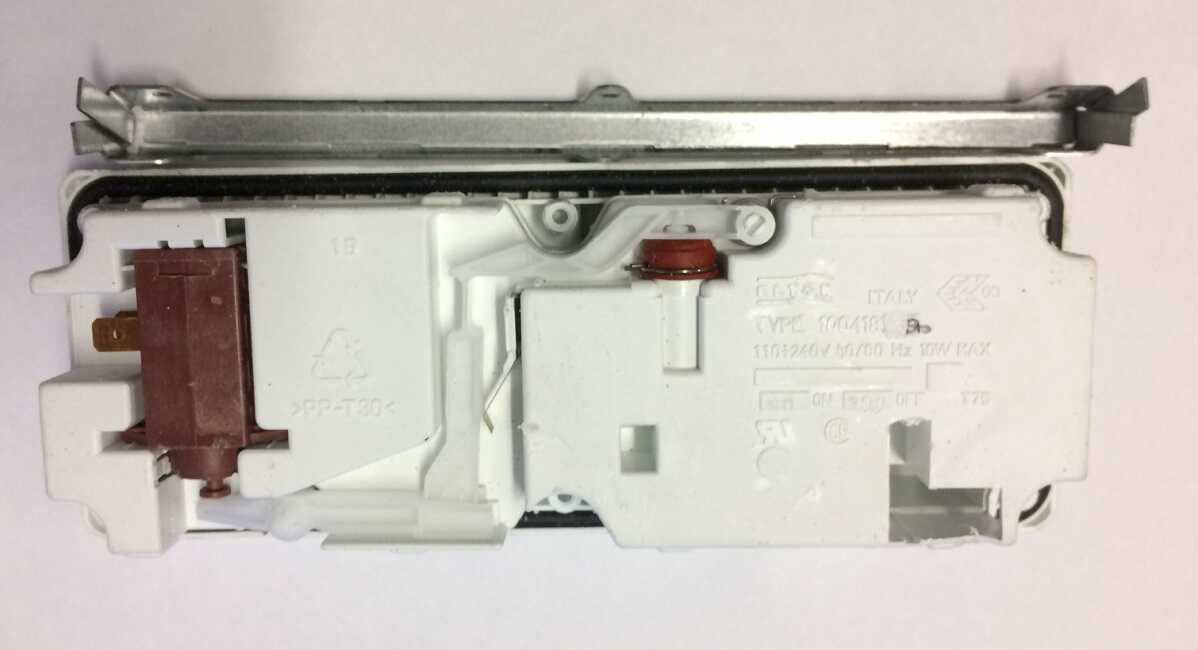

DWU003 UNIVERSAL SIMPSON, WESTINGHOUSE, LG DISHWASHER DISPENSER
Alt code: 8905145FW, 8905145, 4924FD2123E, replaces 4924FD2123A, 4924FD2123C 100418-82.
Equivalent to
Qualtex DWU003
Electrolux part number 0141400013, 0141400019
Fisher & Paykel Part No. FP521269, 521269. Replaces FP473565, 473565. Eltek 100418-86, 100418-90.
Dual dispenser for detergent and rinse aid to fit many LG dishwasher models including LD1204W, LD12AW2, LD1403W, LD14AT1, LD14AT2, LD14AW1, LD14AW2, LD14AW3.
Also fits late model Simpson & Westinghouse models and also all upright Fisher & Paykel dishwashers F&P L80, M80, S80, 262M, 272S, 282E, 292T, 3885M, 3885S, 3886M, 3886S, 3886T, 712M, 812E, 813E, 818S, 912T, 913T, 918TD, DW820 & DW920.
FP521269 and 0141400019 part are identical except for a lighter grey colour and almost twice the price! DWU003 is white and also more expensive.
FISHER & PAYKEL, SIMPSON SOME VULCAN DISHLEX GLOBAL MODELS WITH WAX COILS NOT SOLENOIDS.
Dimensions of section that protrudes into the dishwasher – 205mm wide X 78mm high X 17.6mm thick. Dimensions of section the protrudes into the door cavity – 190mm wide X 64mm wide X 29mm thick. Hole spacing – 56mm vertical, 91mm horizontal.
