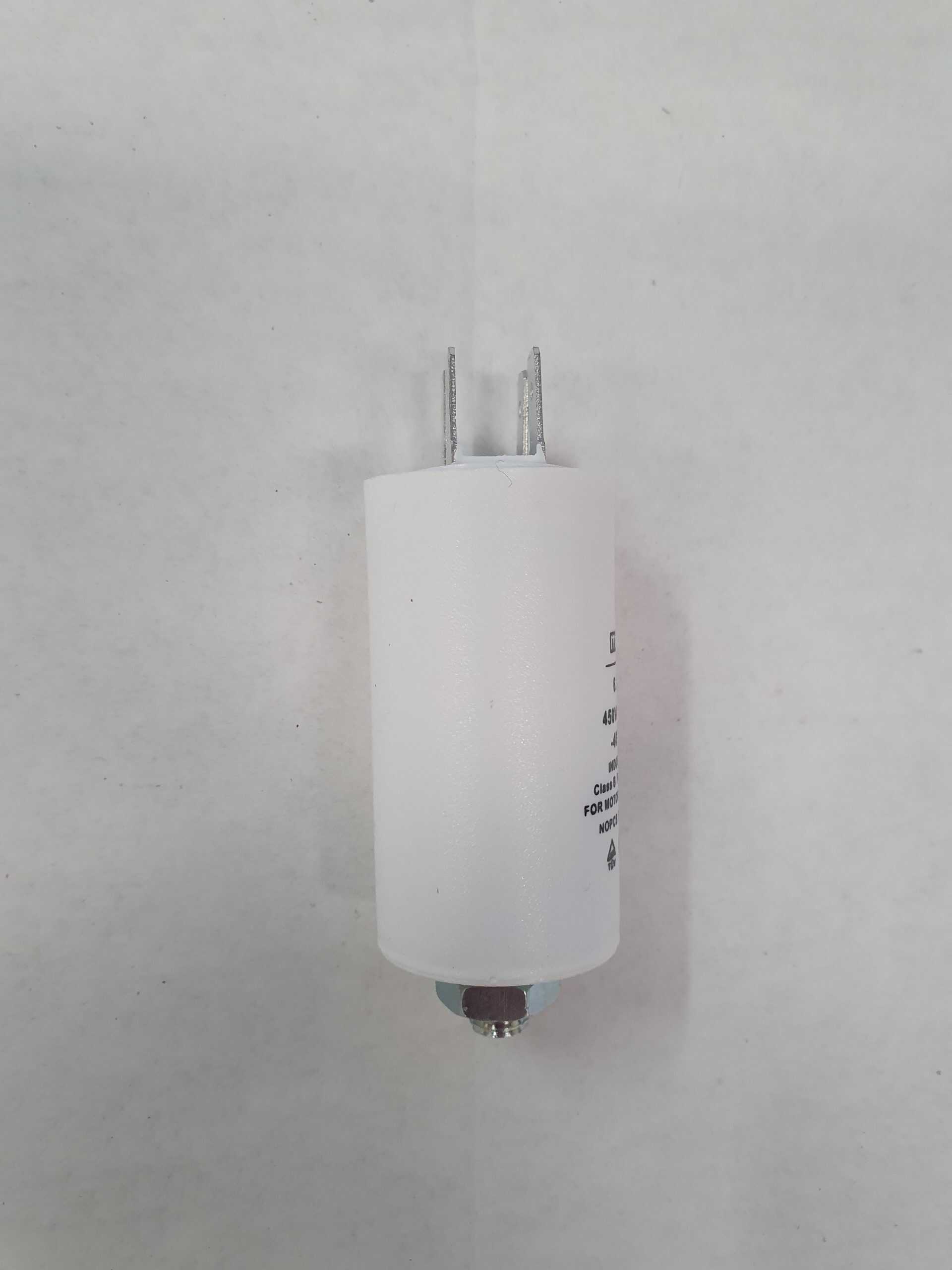

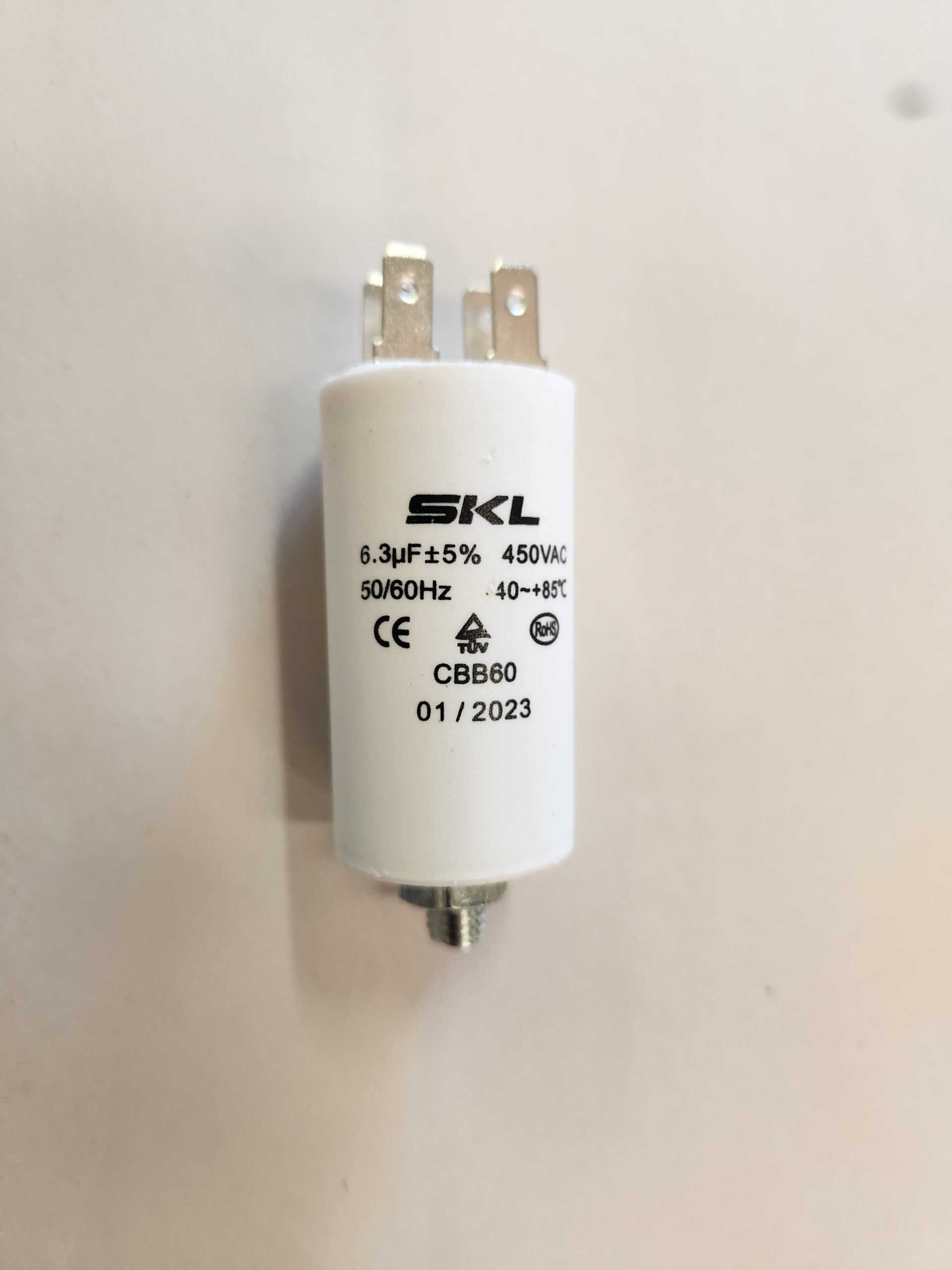

6.3UF Motor Capacitor
Dimensions: Dimensions 1.18 inch (30mm) x 3.31 inch (84mm)
Type: AC High Quality Electrolytic Capacitor Run/Start Motor Capacitor 6.3uF +-5% Rated voltage 450Vac
Used in: AC Appliances, Pumps, Electric Motors
Condition Brand New run circular start capacitor 4 terminals on the top, Only 1 on each side of the divider line are required. It will power a compressor, electric motor and a fan motor
Model: CBB60 (Universal model
Shell material: Plastic Dielectric
Material: Polypropylene film
Capacity: 6.3uf Tolerance: +-5%
Rated voltage: 250V,400V,450V
Frequency: 50 / 60Hz
Life Rated: Class A 30,000 Hours 250VAC Class B 10,000 Hours 400VAC Class C 3,000 Hours 450VAC
Environmental: -40 to 85C
Standard: EN60252
This capacitor is used for start-up or run operation of AC motors with frequency of 50Hz/60Hz such as Replacement for Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors. It is small in size, lightweight, heat resisting and anti-explosion. Round capacitor can be used to substitute oval shape one with the same MFD and Volt specs.
