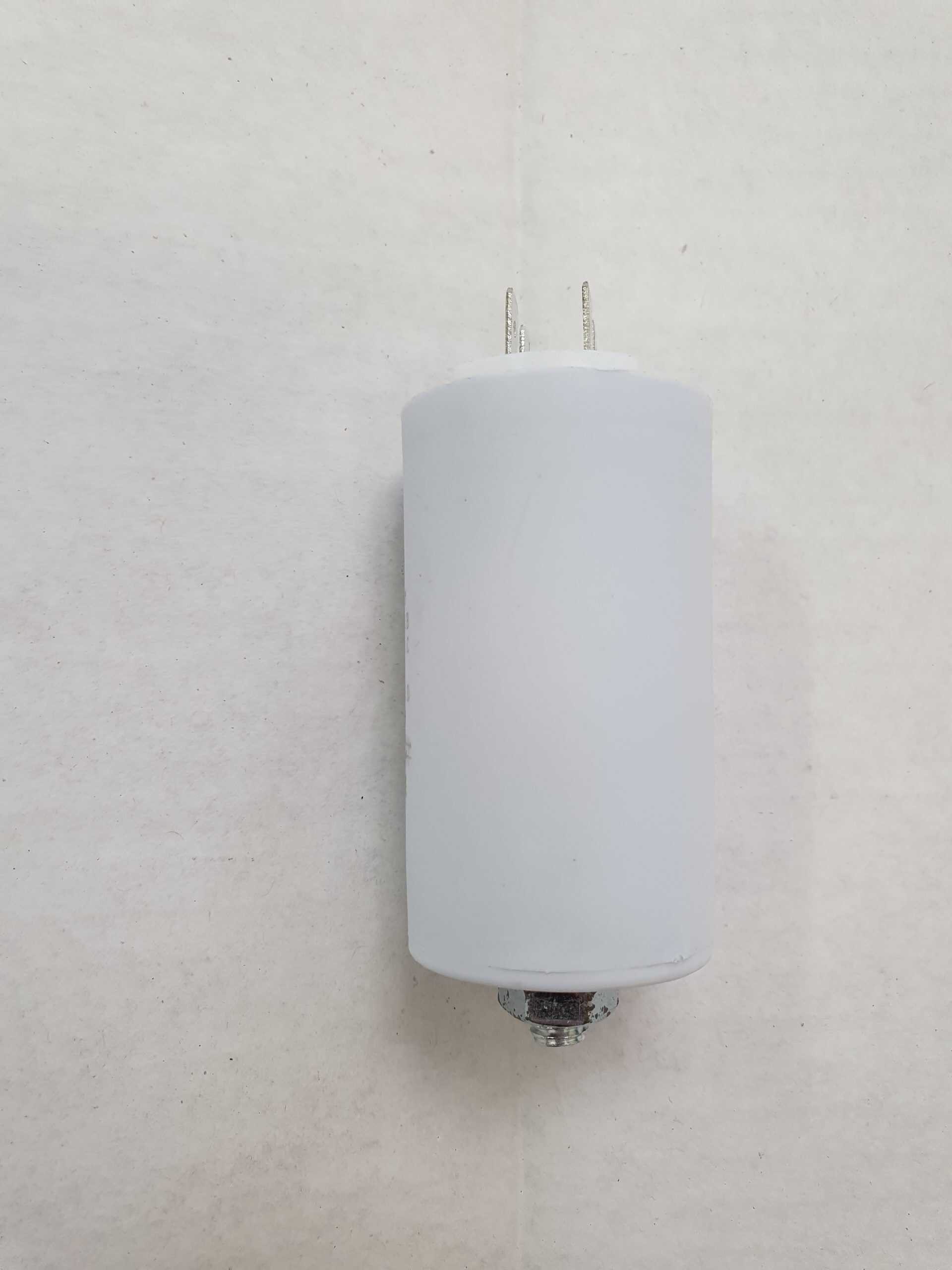

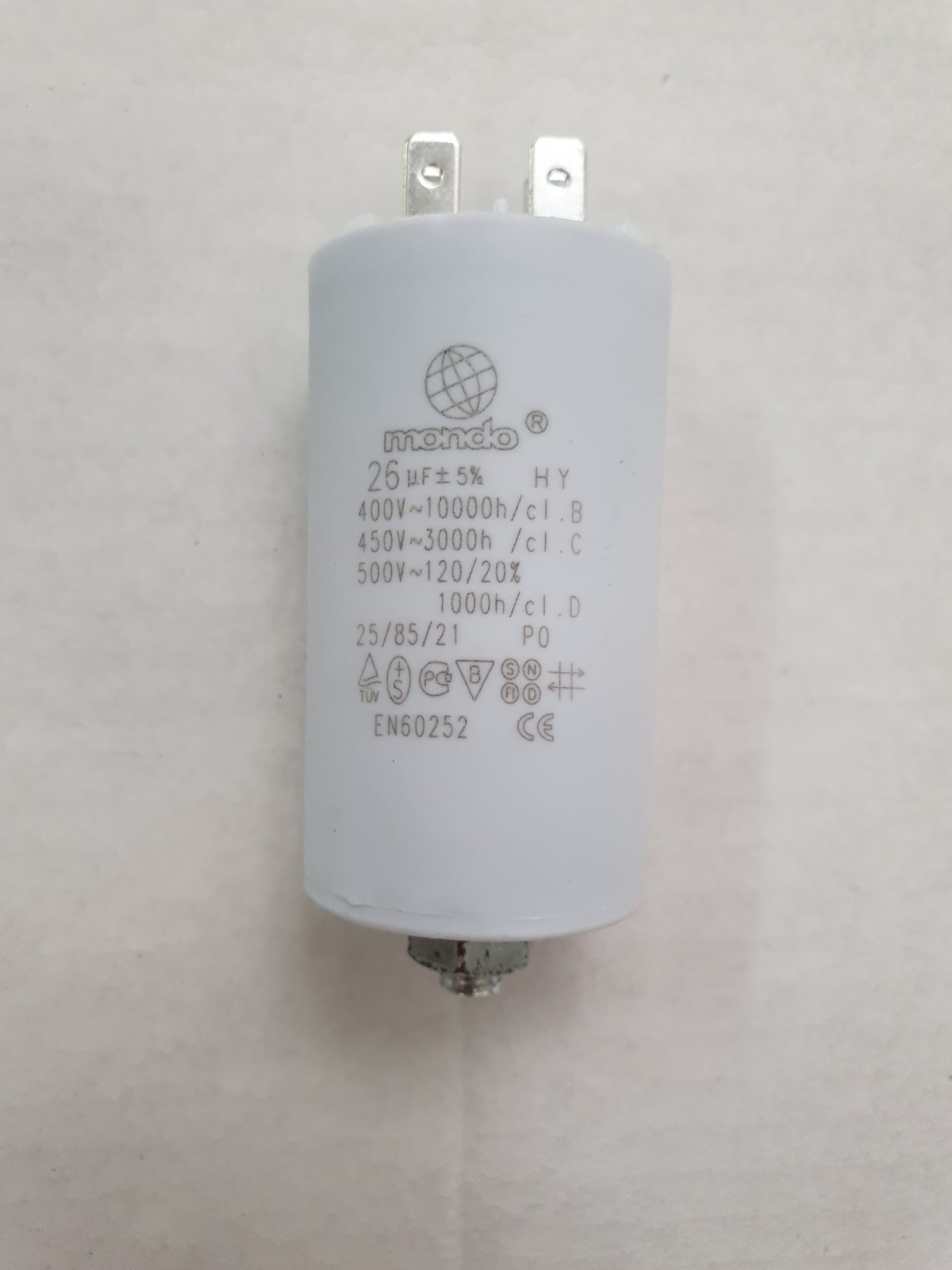

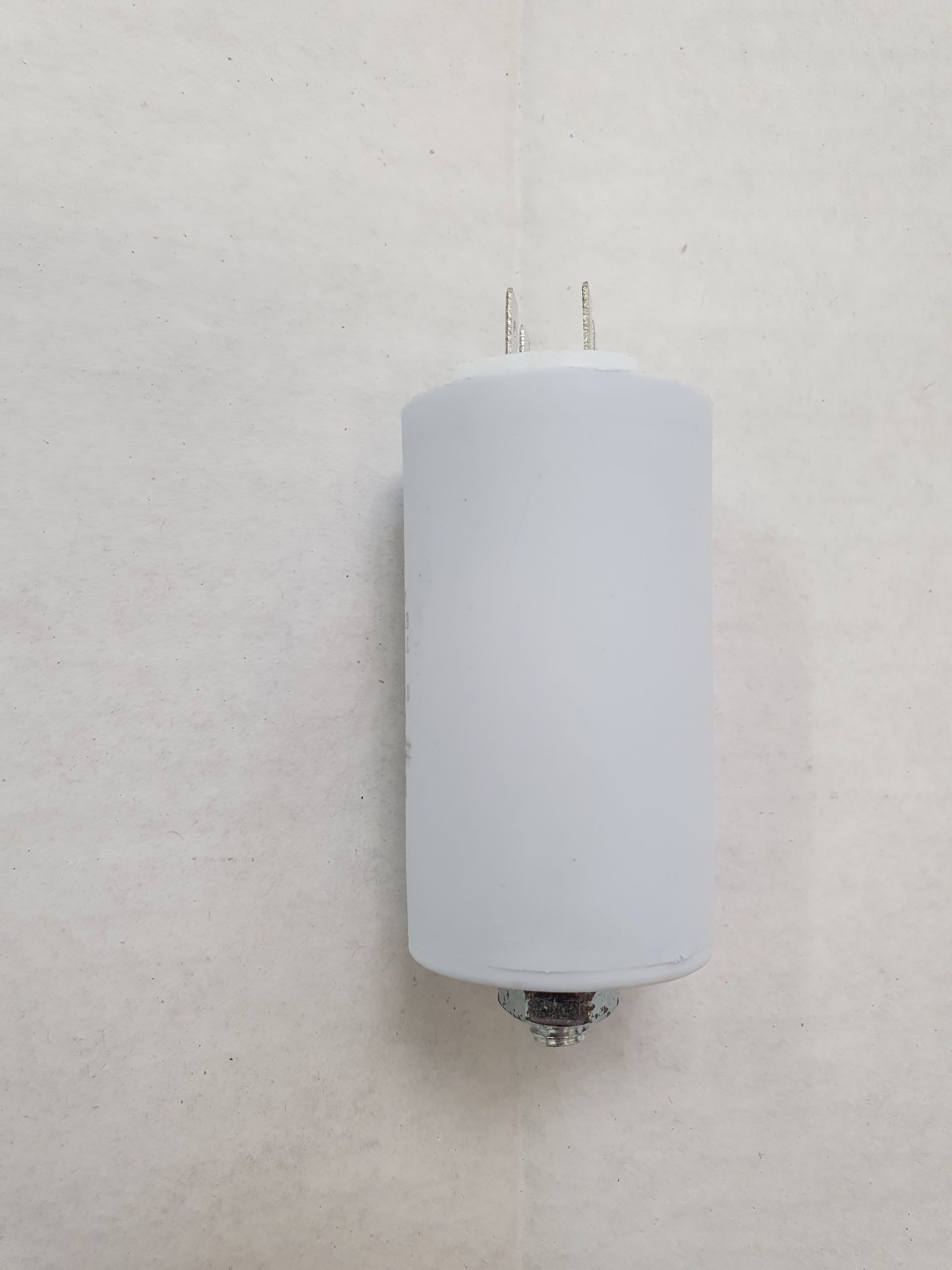

26UF Motor Capacitor Dimensions (41mm/1.61inch x 98mm /3.86inch)MONDO run circular start capacitor 4 terminals on the top, Only 1 on each side of the divide line are required. It will power a compressor, motor or a fan motor
Type: AC High Quality Electrolytic Capacitor Run/Start Motor Capacitor 26uF +/-5% Maximum voltage 450Vac
Used in: Appliances, Pumps, Electrical Device
Condition: Brand New
Model: CBB60 (Universal model)
Shell material: Plastic
Dielectric Material: Polypropylene film
Capacity: 26uf Tolerance: ±5%
Rated voltage: 250V,400V,450V,500V,630V AC
Frequency: 50 / 60Hz
Life Rated: Class A 30,000 Hours 250VAC Class B 10,000 Hours 400VAC Class C 3,000 Hours 450VAC
Capacitor dimension: Diameter (41mm/1.61inch x 98mm /3.86inch)
Standard: EN60252
This capacitor is used for start-up and operation of AC motors with frequency of 50Hz/60Hz such as Replacement for Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors. It is small in size, lightweight, heat resisting and anti-explosion.
Round capacitor can be used to substitute oval or square shape one with the same MFD and Volt rating.
Note: Capacitors failing again in a short time can be due to a Faulty, Failing or restricted motor or device.
